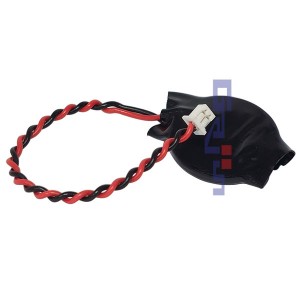

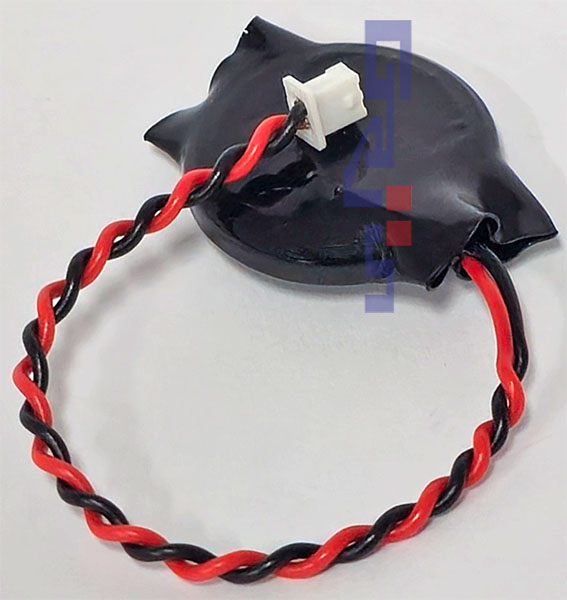

■ Lithium Manganese Dioxide Rechargeable Battery (리튬 이산화망간 충전배터리)
ㅡ 커넥터 Molex 51021-02M-RR 극성주의
전선의 (좌, 우 위치확인) 빨간색은 플러스(+), 검은색은 마이너스(-)

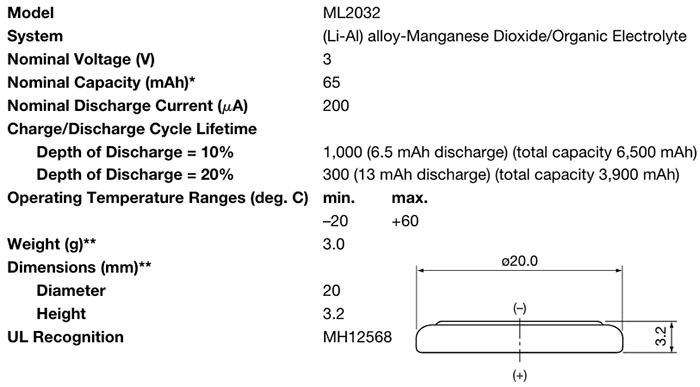

◇ Nominal Voltage : 3V
◇ Nominal Capacity : 65mAh
◇ Nominal Discharge Current : 200㎂
◇ Charge/Discharge Cycle Lifetime
- Depth of Discharge (= 10 %) : 1,000 (6.5mAh discharge) (total capacity 6,500mAh)
- Depth of Discharge (= 20 %) : 300 (13mAh discharge) (total capacity 3,900mAh)

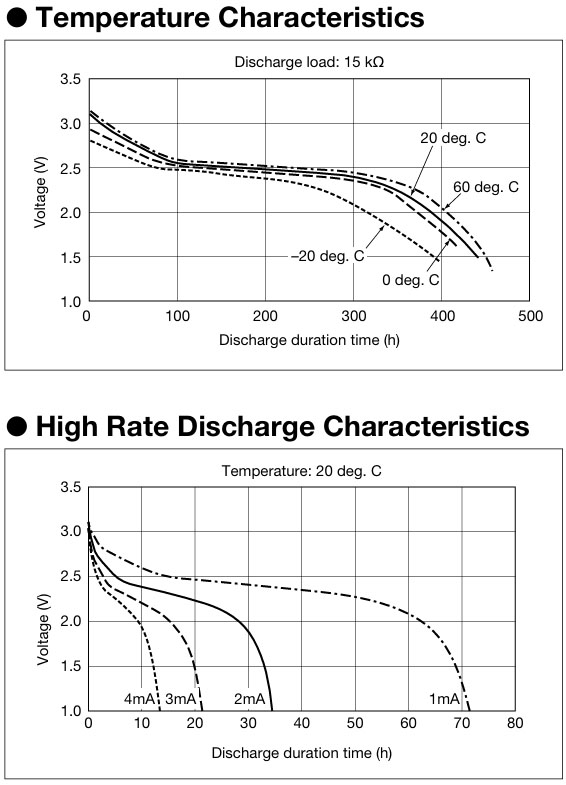

◇ Operating Temperature Ranges : -20 ~ 60℃
◇ Weight : 5g (about)
◇ Dimensions : (W)21 x (L)25 x (T)4mm (about)
