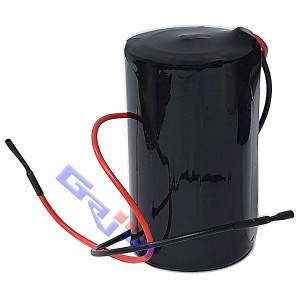

■ Primary lithium-thionyl chloride (Li-SOCl₂) Battery (리튬1차배터리) ㅡ 전선을 연결하여 수축필름으로 포장하였습니다. (전선의 빨간색은 +/플러스, 검은색 또는 하얀색은 -/마이너스)
◇ Nominal Capacity : 17.0 Ah ( 17,000 mAh ) ◇ Open Circuit Voltage : 3.67 V ◇ Nominal Voltage : 3.6 V ◇ Nominal Energy : 61.2 Wh ◇ Pulse capability : Typically up to 400 mA ◇ Maximum recommended continuous current : 250 mA ◇ Storage Temperature : +30 ℃ max ◇ Operating temperature : - 60 ~ 85 ℃ ◇ Diameter (max) : 36 mm (about) ◇ Height (max) : 63 mm (about) ◇ Typical Weight : 92 g (about) |
