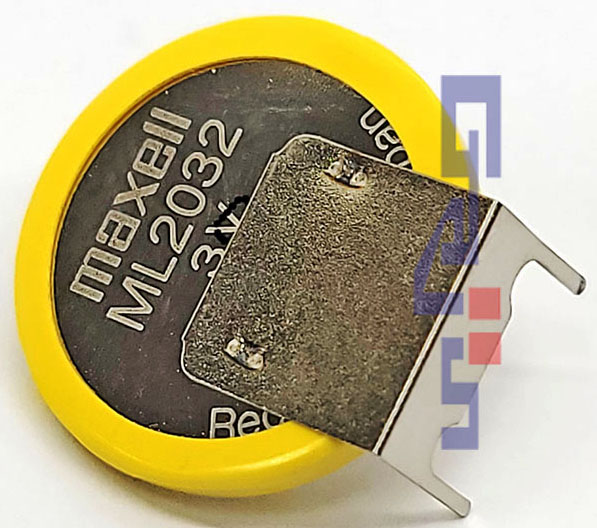

■ Lithium Manganese Dioxide Rechargeable Battery (리튬 이산화망간 충전배터리)

 +/플러스 2핀과 -/마이너스 1핀의 간격 : 18.5 mm

 +/플러스 2핀 간격 : 10 mm

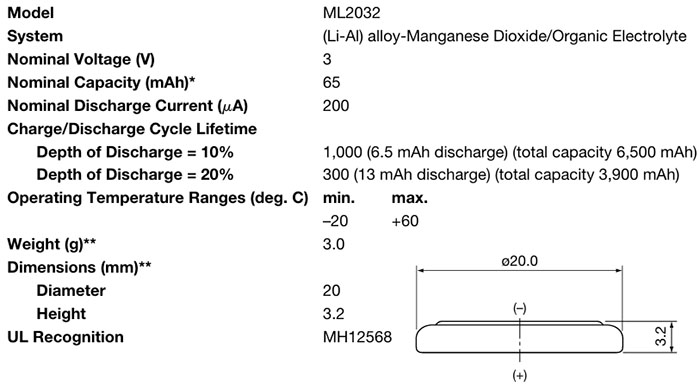

◇ Nominal Voltage : 3 V

◇ Nominal Capacity : 65 mAh

◇ Nominal Discharge Current : 200 ㎂


□ Charge/Discharge Cycle Lifetime

◇ Depth of Discharge (= 10 %) : 1,000 (6.5 mAh discharge) (total capacity 6,500 mAh)

◇ Depth of Discharge (= 20 %) : 300 (13 mAh discharge) (total capacity 3,900 mAh)

◇ Operating Temperature Ranges : -20 ~ 60 ℃

◇ Weight : 3.2 g (about)

◇ Dimensions(Diameter x Height) : 21 x3 .8 mm (about)
