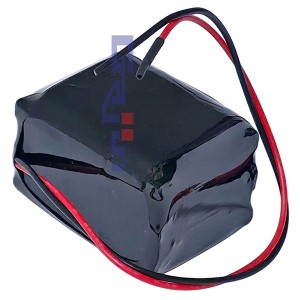

■ 제이씨엠 리튬이온 폴리머 충전배터리 JCM103040P (3.7V 1200mAh / PCM 내장) 3개를

 직렬로 조립하여 전압을 높이고 입출력 전선을 연결하였습니다.

ㅡ 극성주의 : 전선의 빨간색은 플러스(+), 검은색은 마이너스(-)

◇ Nominal Voltage : 11.1V

◇ Charge voltage : 12.6V

◇ Typical Capacity : 1200mAh (0.2C Discharge)

◇ Minimal capacity : 1200mAh (0.2C Discharge)

◇ Standard Charge : 0.2 C

◇ Charging time (Standard Charging) : 6.0 hours (0.2C)

◇ Charging time (Rapid charge) : 1.5 ~2.5 hours (1.0C)

◇ Max. charge Current (10 - 15℃) : 0.2C

◇ Max. charge Current (15 ~ 60℃) : 1.0C

◇ Max. Discharge Current : 1C (-20 ~ 60℃)

◇ Temperature range for storage : -20 ~ 35℃

◇ Size : 130 x 30 x 42mm (about)

◇ Weight : 76g (about)
