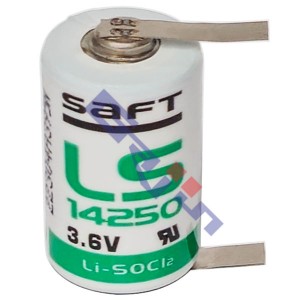

■ Primary Lithium-thionyl chloride (Li-SOCL₂) Battery (리튬1차 배터리)
- bobbin cell
◇ Nominal Capacity : 1200mAh (1.2Ah)
◇ Open Circuit Voltage : 3.67V
◇ Nominal Voltaage : 3.6V
◇ Nominal Energy : 4.32Wh
◇ Pulse Capability : Typically up to 100mA
◇ Maximum Recommended Continuous Current : 35mA
◇ Operating Temperature Range : -60 ~ +85℃
◇ Size : (1/2AA) 14.55 x 25.15mm
◇ Weight : 9g (about)
< 플러스(+) 극 니켈단자 ↓ >  < 니켈단자를 접어서 발송해 드립니다 >
< 마이너스(-) 극 니켈단자 ↑ >
|
