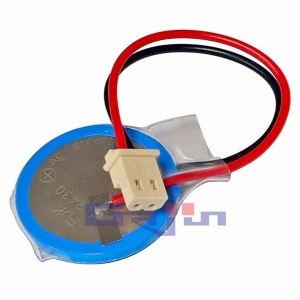

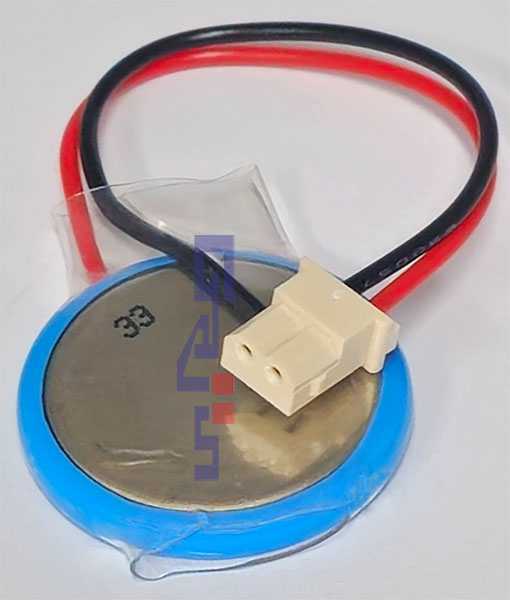

■ Lithium Manganese Dioxide Rechargeable Battery (리튬 이산화망간 충전배터리)

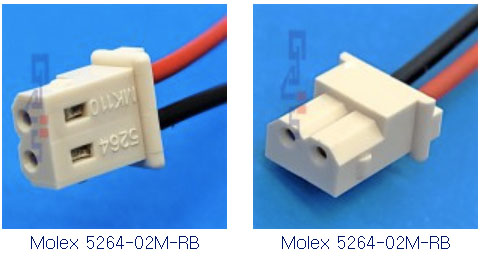

ㅡ 커넥터(Molex 5264-02RB) 극성주의

 전선의 (좌, 우 위치확인) 빨간색은 플러스(+), 검은색은 마이너스(-)

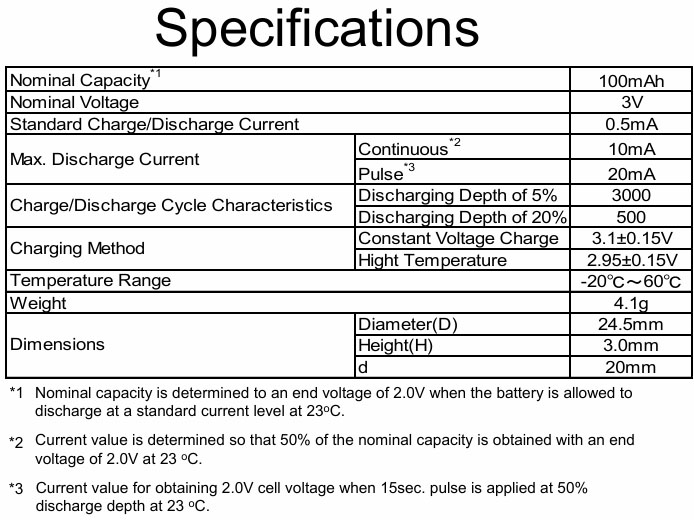

◇ Nominal Capacity : 100mAh

◇ Nominal Voltage : 3V

◇ Standard Charge/Discharge Current : 0.5mA

◇ Max. Discharge Current : (Continuous) 10mA,  (Pulse) 20mA

◇ Charge/Discharge Cycle Characteristics

 - Discharging Depth of 5% : 3000

 - Discharging Depth of 20% : 500

◇ Charging Method

 - Constant Voltage Charge : 3.1±0.15V

 - Hight Temperature : 2.95±0.15V

◇ Temperature Range : -20 ~ 60℃

◇ Weight : 5g (about)

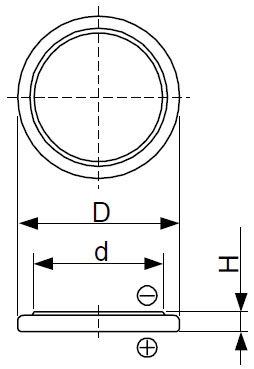

◇ Size  : 25 x 28 x 4(3.2) mm (about)
